The WMFG 1.0E Electric Pump is engineered to withstand demanding coastal conditions, delivering fast and reliable inflation for SUPs, kites, and wings. However, heavy use in sandy, wet, or hot environments can occasionally lead to operational issues. This guide is designed to help you quickly diagnose faults, understand screen error codes, and maintain your pump for maximum longevity.
1. General Troubleshooting & Diagnostics
If your pump behaves unexpectedly, fails to start, or inflates slower than normal, consult the diagnostic matrix below. Many issues can be resolved immediately on the beach by checking hose seals, battery levels, or allowing the unit to cool down.
| Fault / Issue | Possible Cause | Solution |
|---|---|---|
| Unable to turn on |
1. Low battery 2. Motor overload 3. Suspected water ingress 4. Hardware failure |
• Fully charge the battery and try again. • Suspected Water Ingress: Do not use or charge. Allow the pump to dry in a well-ventilated area for 3 days before attempting to turn on. • If it still fails, contact after-sales support. |
| Unable to pump after turning on |
1. Active error code displayed 2. Low battery 3. Hardware failure |
• Check the screen for error codes (see guide below). • If the battery level is 0, fully charge and reactivate. • Contact after-sales support if the issue persists. |
| No display when charging |
1. Charger or cable failure 2. Hardware failure 3. Water ingress |
• Reconnect the charging cable. • Ensure you are using a charger and cable that support 5V 2A or higher. • In case of suspected water ingress, allow to dry for 3 days. |
| Charging time too long |
1. Insufficient charger output 2. Insufficient load on charging cable |
• Use a high-quality Power Delivery (PD) charger and cable supporting 5V 2A (or higher fast charging). |
| Inflation time too long |
1. Air hose is blocked, kinked, or broken 2. Leakage at the nozzle connection |
• Inspect the air hose for kinks, damage, or blockages. • Reinstall the inflation tube or replace the nozzle O-ring to ensure an airtight seal. |
Setting up the WMFG 1.0E Electric Pump. Keep the pump on a clean surface or in its carry bag to prevent sand ingress.
2. Smart Display Screen & Error Codes
The 1.0E is equipped with a digital readout that alerts you to temperature warnings, pressure anomalies, and internal motor safety shutoffs. Look at the display when an alert occurs to identify the issue:
How to read the display:
• Top Row: Shows your current/live pressure in PSI or Bar.
• Bottom Row: Shows your target/preset pressure.
• Blinking Icons: Indicate active safety or system alerts (overheating, charging status, battery low).
| Error / Display | Failure Cause | Solution |
|---|---|---|
| Low-Pressure Exceeded | The current of the low-pressure pump stage exceeds the safe limits. | Power down the unit, verify the valve is open, and restart. |
| High-Pressure Exceeded | The current of the high-pressure compressor stage exceeds the safe limits. | Power down the unit, verify there are no kinks in the hose, and restart. |
| High Current / Short | Over-current detected during charging or operation. | Disconnect charger, check the charging port for debris/sand, and reconnect. |
| Low Current | Charging input voltage/current is too low to successfully charge. | Ensure you use a Power Delivery (PD) charger and cable rated for 5V 2A or higher. |
| Communication Error | Internal controller communication fault. | Shut down, let the battery rest for 5 minutes, and power back on. |
| Overheating | Internal temperature has reached a safety threshold. | Do not operate in direct sunlight. Move the pump to shade, power off, and let cool for 15 minutes. |
3. Best Practices & Long-Term Care
Taking proper care of your WMFG 1.0E electric pump ensures it remains a reliable partner on all your watersport adventures. Follow these essential tips:
- Prevent Sand Ingress: Sand is the number one enemy of high-pressure compressors. Always place the pump on a bag, towel, or car mat rather than directly on loose beach sand.
- Keep the Vents Clear: The internal cooling fan requires active airflow. Avoid covering the side fan vents while inflating.
- Battery Health: Charge the battery at least once every 3 months during the off-season. Avoid leaving the battery fully discharged for prolonged periods.
- Dry Storage: Even though the unit has rubber seals, always wipe off any salt water or moisture before storing it inside the carrying case.

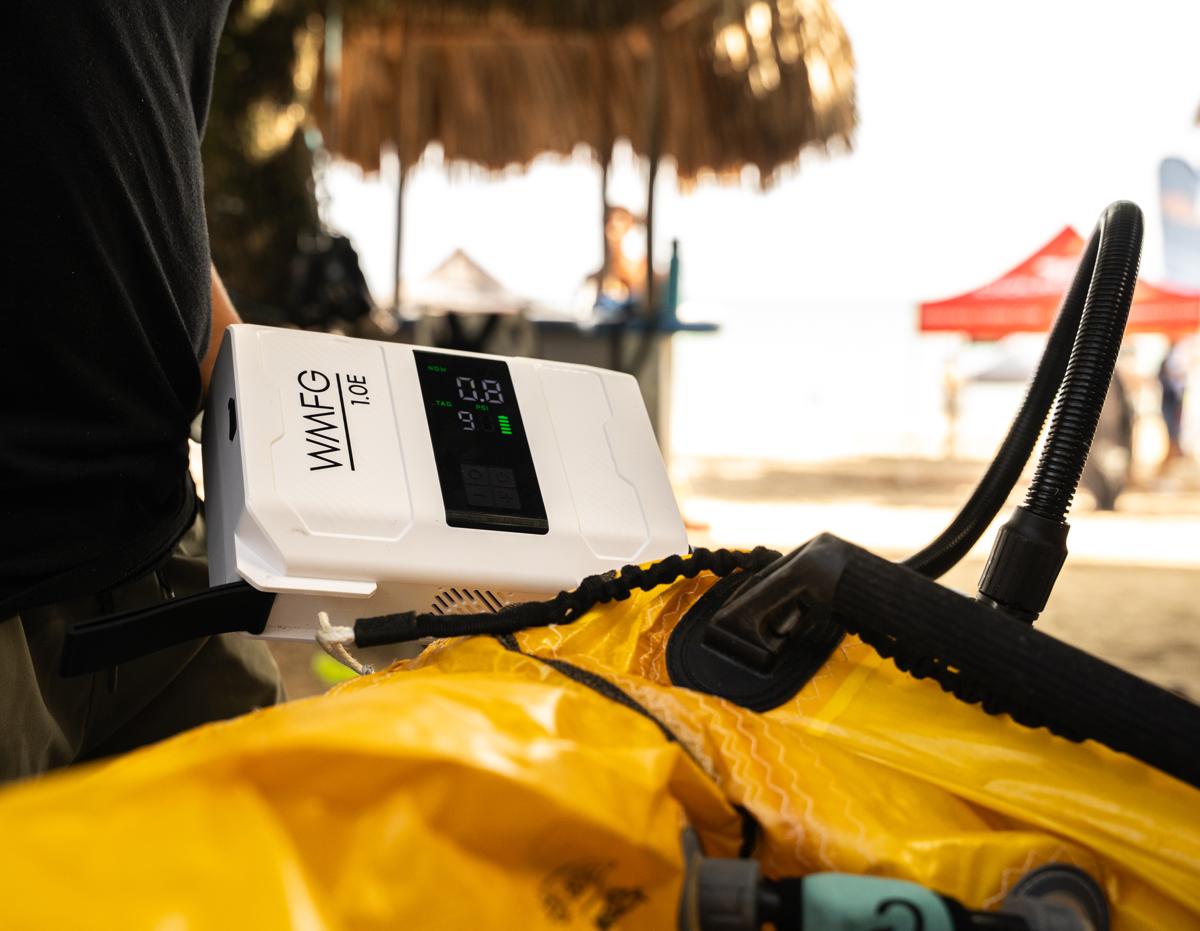

The WMFG 1.0E electric pump ready for action at the beach.
Still experiencing issues?
If you have reviewed the diagnostic guide and are still experiencing problems, our customer support team is here to assist you.
