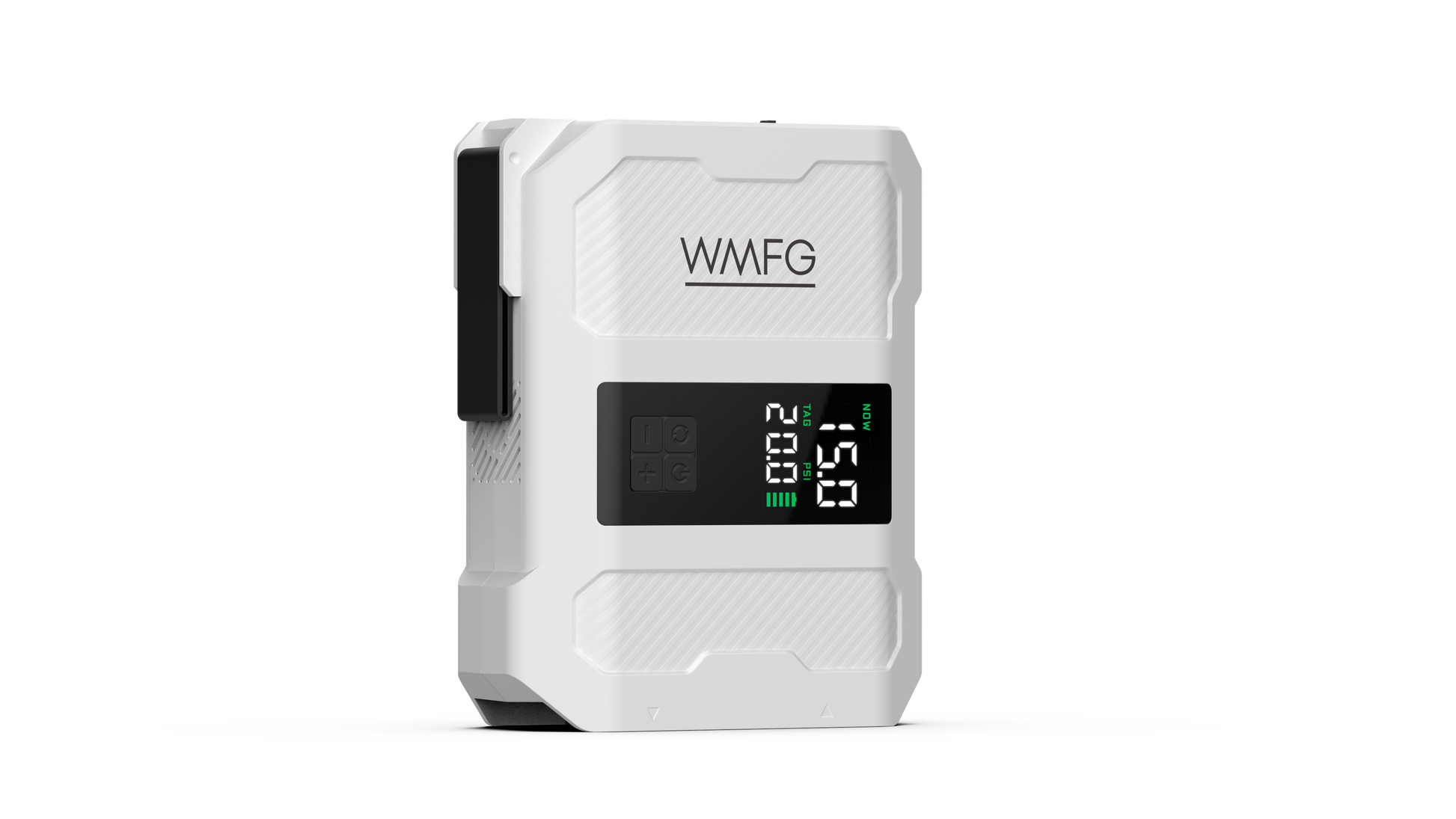

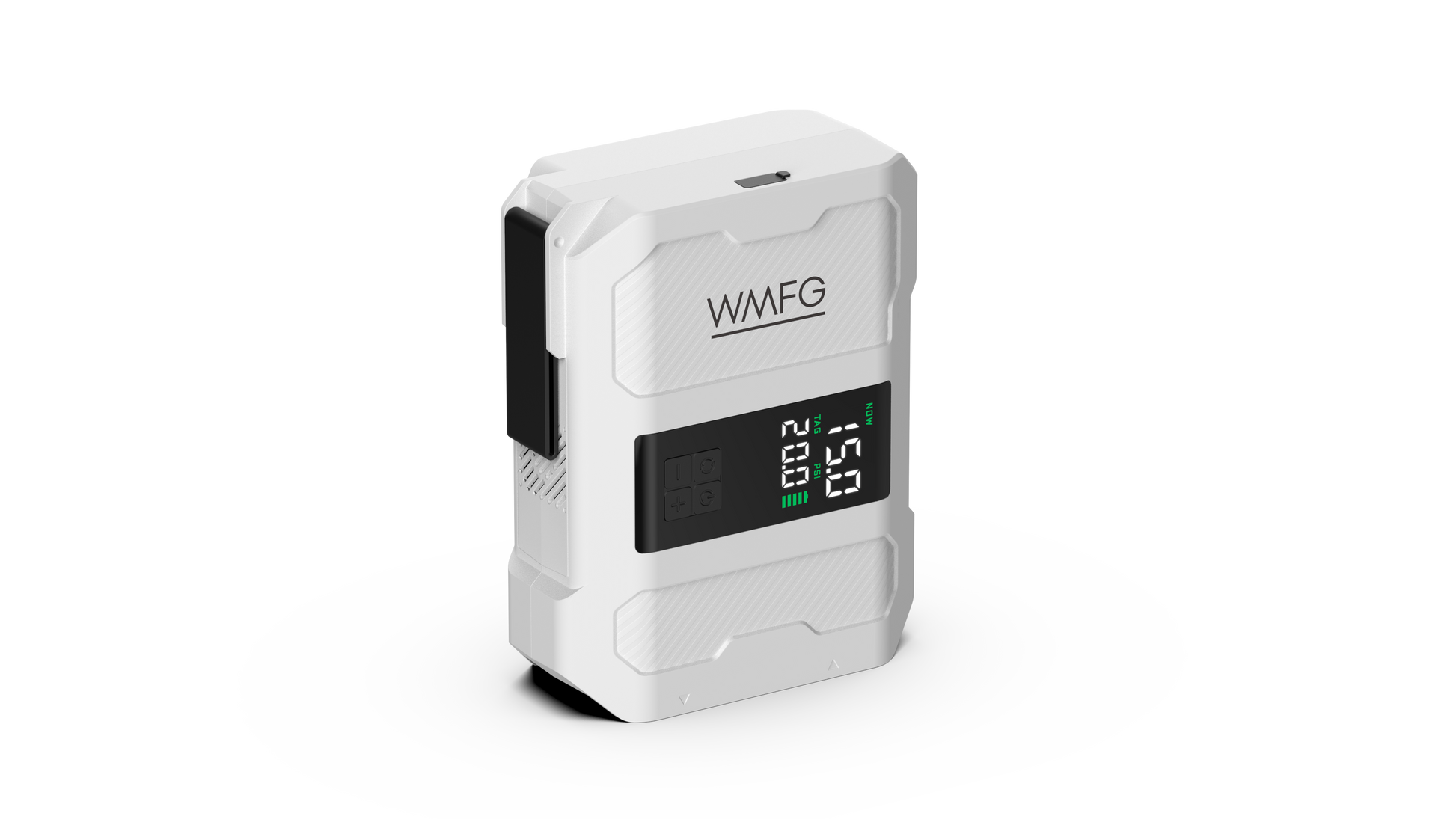

WMFG 1.0E Electric Kite, Wing, SUP Pump
WMFG 1.0E Electric Kite, Wing, SUP Pump
Couldn't load pickup availability
High-Volume. High-Pressure. Zero Compromise.
The WMFG 1.0E Electric Pump sets a new benchmark for portable inflation in wind sports. Engineered for high-output performance, long battery life, and total reliability, the 1.0E delivers rapid inflation and smart pressure control in a rugged, travel-ready design. Whether you're pumping Kiteboarding Kites, Wingfoil Wings, or SUPs, it’s the all-in-one solution trusted by riders who demand more from their gear.
Advanced Key Features
- Dual-Stage Smart Inflation (AUT Mode): Features a high-flow fan for rapid low-pressure filling (under 0.8 PSI, up to 1.0 PSI max) and automatically switches to an industrial-grade compressor for rigid high-pressure inflation (up to 20 PSI max).
- Digital LCD Screen & Smart Pressure Control: Accurate built-time digital display monitors target pressure and real-time pressure in PSI or Bar. Set your desired pressure, press start, and the pump handles the rest.
- Built-in USB-C Power Delivery & Power Bank: Equipped with a massive 5200 mAh / 18.5V (96.2 Wh) battery pack. Use the built-in USB-C port to fast-charge other mobile devices, tablets, or action cameras on the beach (max 30W Power Delivery output).
- Intelligent Protection & Safety Control: Features smart auto-shutoff when target pressure is reached. Equipped with automated safety shutdowns: 1-minute idle auto-off, 20-minute continuous run protection, and 10-minute continuous low-pressure cut-off.
Technical Specifications
| Dimensions | 215 × 172 × 85 mm |
| Weight | 1.65 kg |
| Battery Capacity | 5200 mAh / 18.5 V (96.2 Wh) |
| Max Pressure | 20 PSI / 1.4 Bar |
| Rated Power | < 240 W (18.5V, 13A max current) |
| Type-C Input/Output | 5V 3A, 9V 3A, 12V 2.5A, 15V 2A, 20V 1.5A (PD 30W Max) |
| Operating Temp | 0 ℃ to 40 ℃ (Storage: -10 ℃ to 60 ℃) |
Universal Valve & Nozzle Compatibility Guide
Each WMFG 1.0E Electric Pump includes a high-pressure hose and a full set of premium nozzles to fit virtually every major inflatable on the market:
- Halkey-Roberts / Summit 2 / H3 Valve: Heavy-duty secure bayonet fitting, ideal for SUPs, inflatable docks, and modern kites/wings.
- Leafield C7 & D7 Valves: Perfect fit for premium inflatable rafts and kayaks.
- Duotone Valve Attachment (Blue O-Ring): Custom nozzle adapter tailored for Duotone and Core kite/wing inflation valves.
- Boston Valves (Threaded / Non-threaded): For automatic inflatables, tents, and leisure towables.
- Mattress & Cushion Valves (Decathlon): For camp mats, pillows, and sleeping systems.
- Vacuum Storage Valve: For quick pack-down of clothes, sleeping bags, and travel items.
Quick Operation & Tips
- Power ON/OFF: Long press the Power button. Target pressure defaults to 12 PSI (recommended for kites/wings).
- Calibration: If the screen doesn't show 0 when disconnected, press and hold [+] and [-] simultaneously to reset the pressure gauge to zero.
- Mode Switching: Long press the Alter button to toggle between FAN (large airflow, max 1 PSI), CPR (compressor, max 20 PSI), or AUT (automated switchover at 0.8 PSI).
- Maintenance: Store dry and wipe off any moisture. Charge the battery at least once every 6 months to maintain battery reliability.
ADDITIONAL INFORMATION
Key Features
Fastest Pump in the Game
The dual-stage system delivers exceptional inflation speed and control:
- Up to 430 L/min for high-volume fill
- Up to 120 L/min for targeted pressurization
- Inflate a 10’6 board to 15 PSI in under 5 minutes—or top off multiple kites and wings in a single session.
Maximum-Capacity, Flight-Compliant Battery
With a 5200mAh lithium-ion cell (the largest allowed on most airlines), the 1.0E handles 5 full inflations per charge. Ideal for solo riders or group missions, and fully recharges via USB-C fast charge in just 3.5 hours.
Smart Interface + Power Bank Mode
Equipped with a dual-screen LED display and USB-C output, the 1.0E shows real-time PSI, auto-stops at your preset pressure, and doubles as a 30W emergency power bank for phones and devices.
Auto Shutoff with Digital Precision
A built-in high-accuracy pressure sensor (±0.2 PSI) protects your gear from overinflation. Set your target and let the 1.0E do the rest.
Travel-Ready and Fully Loaded
Every pump comes complete with a water-resistant carry bag, reinforced hose, 7 universal nozzles, spare gaskets, USB-C cable, and 30W charging block. No upsells. No extras required.
Technical Specifications
- Battery: 5200mAh Lithium-ion (TSA-compliant)
- Inflation Flow Rate: 430L/min (Stage 1), 120L/min (Stage 2)
- Max Pressure: 20 PSI
- Deflate Function: Yes
- Charging: USB-C 30W (3.5 hrs full charge)
- Power Output: USB-C (30W power bank mode)
- Weight: 3.6 lbs
- Included Accessories: Carry Bag, Hose, 7 Nozzles, Spare Gaskets, 30W Charger, USB-C Cable
Warranty: 2 Years (USA-based support)
Why Riders Trust the 1.0E
- “Inflated four paddleboards and still had battery left. Game changer.”
- “Super fast and way easier than manual pumping.”
- “Battery lasts all day. Charges fast. Packs down easily. Must-have gear.”
WMFG 1.0E
ACCURATE PRESSURE?

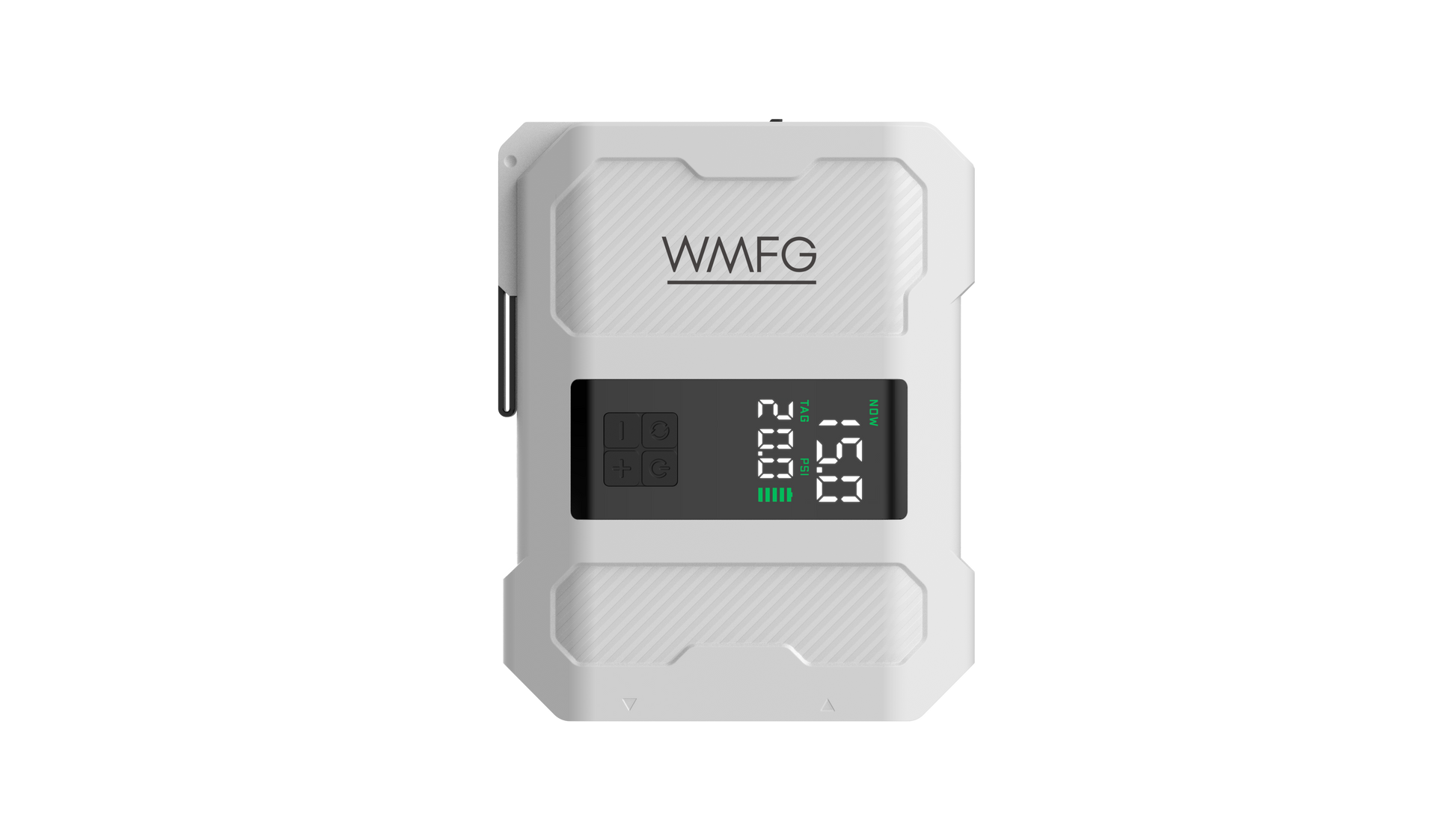

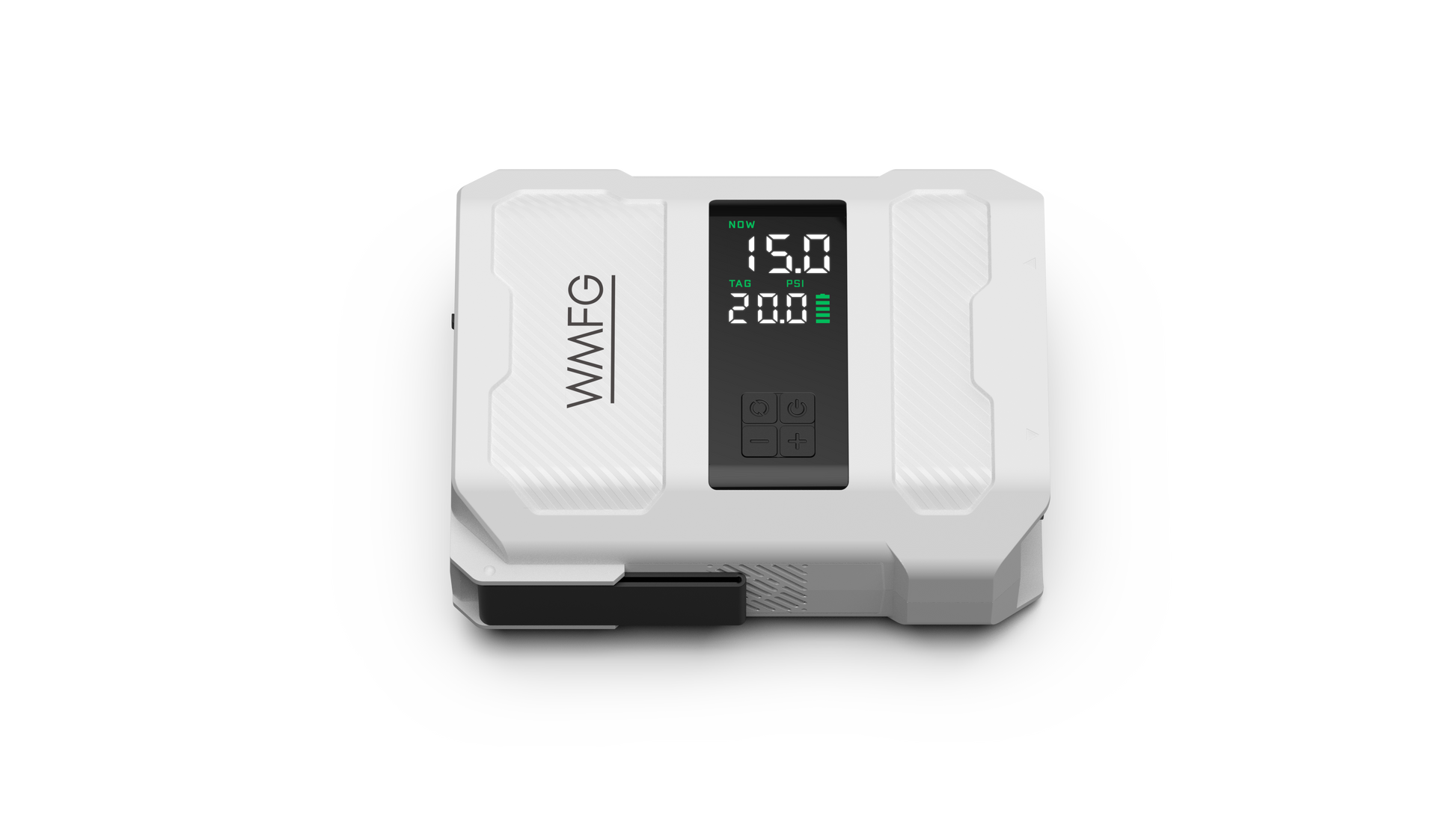

The 1.0E WMFG Electric Pump features a dual screen digital LED display that shows real time inflation data with precision down to 0.2 PSI. A high accuracy air pressure sensor ensures every reading is reliable, while the clean button layout makes operation fast and intuitive—power, mode, and pressure controls right at your fingertips.
WMFG 1.0E
HIGH VOLUME POWER
Need speed? The 1.0E WMFG Electric Pump delivers the fastest inflation in its class—thanks to dual-stage output with up to 430L/min in the first stage for rapid fill, and 120L/min in the second stage for high-pressure precision. From 0 to 8 PSI in minutes, this pump is ideal for inflating even large wings and kites without the wait. Whether you're rigging at sunrise or juggling lessons on a busy beach, the 1.0E gets you on the water faster—no more manual pumping, no more wasted energy.
WMFG 1.0E
MORE AIR, LESS TIME
Worried about running out of power on the beach? The 1.0E’s built-in 5200mAh battery delivers serious endurance, enough to inflate multiple kites or wings on a single charge. Whether you're inflating five 12m kites or pumping for friends, the battery keeps going. And with 30W fast charging, it recharges fully in just 3.5 hours (charger included). Long sessions, quick turnarounds, no problem.
FAQ
How long does the battery last?
The 5200mAh cell supports up to 5 full-size SUP inflations or multiple kites/wings. Actual performance depends on volume and PSI settings.
Can I fly with the 1.0E?
Yes. The battery is within TSA guidelines for carry-on items (always confirm with your airline before traveling).
Will it work with my kite/wing/SUP?
Absolutely. The 1.0E includes 7 different nozzles designed to fit nearly all inflation valves used in watersports.
Is it loud?
Like most electric pumps, it makes some noise—especially at full speed—but users report it's no louder than competitors and well worth it for the time saved.
Can I deflate gear too?
Yes. The deflate function fully empties your gear, making it easier to pack down tight and quick.
